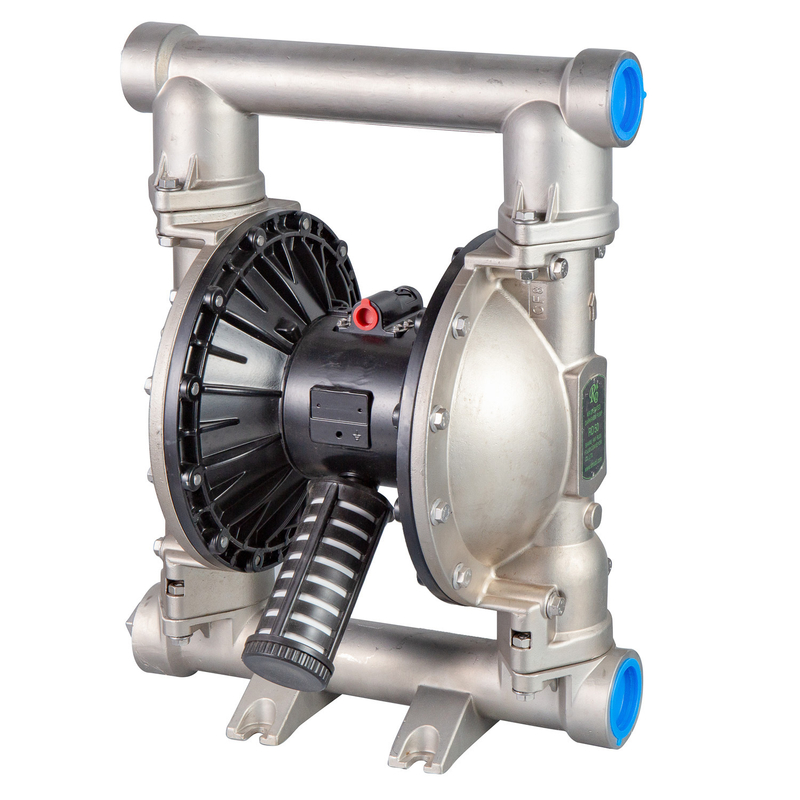

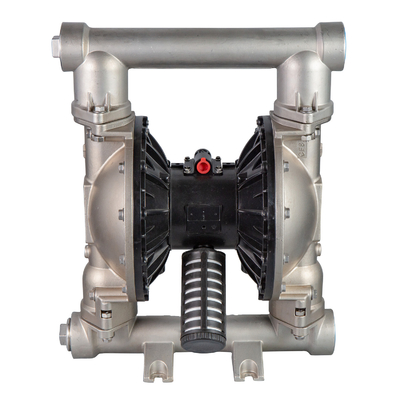

2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater

2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater

Büyük resim :  2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater

Ürün ayrıntıları: Ödeme & teslimat koşulları:
Min sipariş miktarı: 2
Fiyat: $1,694.70
İletişim

2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater

Açıklama
Maksimum çalışma baskısı: 120 psi (0.84MPa, 8.4bar) Maksimum akış hızı: 150gpm (570 pm)
Maksimum Karşılıklı Hız: 145 cpm Maksimum emme yüksekliği: 5m
Maksimum İzin Verilen Tahıl: 0.24in. (6mm) Maksimum Hava Tüketimi: 140scfm (70l/s)
hava girişi boyutu: 1/2 inç Hava çıkışı boyutu: 3/4 inç
Sıvı giriş boyutu: 2 inç sıvı çıkış boyutu: 2 inç
Ağırlık: 47KG Pompa malzemesi: Paslanmaz çelik
Diyafram malzemesi: Teflon, Santopren, Viton, Hytrel, Buna-N Bağlantı türü: Dişli, Flanşlı
Mevcut Boyutlar: 1/4 ", 3/8", 1/2 ", 3/4", 1 ", 1-1/2", 2 ", 3"
Vurgulamak:

2 inch stainless steel diaphragm pump

,

stainless steel wastewater pump 150gpm

,

120 psi diaphragm pump for wastewater

2 Inch Stainless Steel Pneumatic Diaphragm Pump with SP Ball for Wastewater/Drinking Water Treatment
Product Specifications
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 150gpm (570pm)
Max Reciprocating Speed 145cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.24in. (6mm)
Max Air Consumption 140scfm (70L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 2in
Fluid Outlet Size 2in
Weight Stainless Steel pump: 47KGS
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 0 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 1
Product Advantages
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 2
Packaging & Delivery
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 3 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 4 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 5 2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 6
Company Profile
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 7
Shanghai Jiangliang Technology Co., Ltd

Headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Recognized as a High-Tech Enterprise and Credit Company for consecutive years.

Product Range
  • Pneumatic Diaphragm Pumps
  • Electric Diaphragm Pumps
  • Piston Pumps
  • Powder Pumps
  • Sanitary Pumps
  • Diaphragm Pumps with Leakage Detector Controller
  • Pneumatic Diaphragm Regulating Valves
  • Control Valves
  • Sequencing Valves
Certifications & Standards
  • 40+ patents including 10 invention patents
  • Participated in setting national standards for pneumatic diaphragm pumps (SH/T 3191-2017)
  • Certifications: TS.A, CE, ATex, ISO9001, SGS
Materials & Configurations
  • Wetted parts materials: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
  • Diaphragm materials: Teflon, Santoprene, Viton, Hytrel, Buna-N
  • Available sizes: 1/4" to 3"
  • Connection types: Threaded or flanged
Our Service
2 Inch Stainless Steel Diaphragm Pump 120 psi 150gpm for Wastewater 8
  • 24-hour response to all inquiries
  • Professional design and production team
  • Standard export packaging (non-fumigation wooden cases)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples available with cost deductible from future orders.
Q: What's the payment method?
A: D/P, T/T, Western Union - confirmed with exact order.
Q: What is the delivery time?
A: Typically 1-7 working days depending on quantity.
Q: What about packaging?
A: Cartons with foam, wooden cases, or pallets as required.
Q: How are products delivered?
A: International express or sea freight.
Q: What is the warranty period?
A: 15 years for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can customize according to specific requirements.
