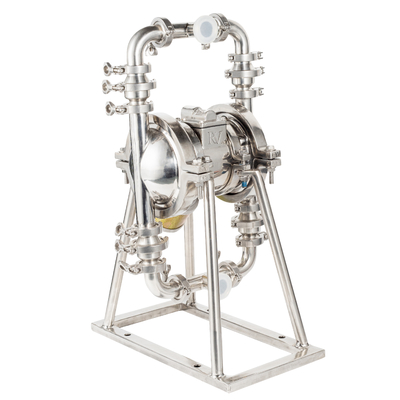

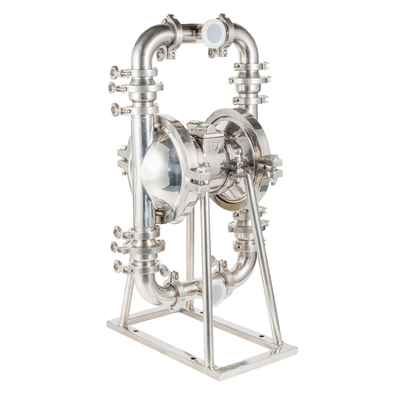

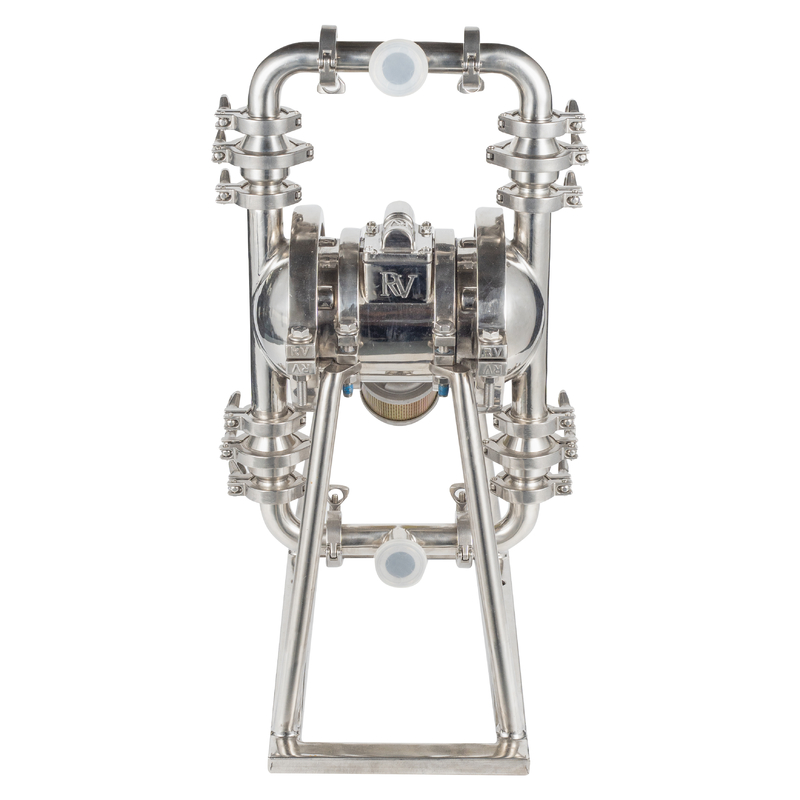

Food Grade Water Pumps
Product Specifications
| Attribute |
Value |
| Warranty |
1 year |
| Customized Support |
OEM, ODM |
| Power Source |
Pneumatic |
| Pressure |
Low Pressure |
| Structure |
Diaphragm Pump |
| Material |
SST |
| Name |
AODD Pump |
| Color |
Black |
| Weight |
66kgs |
| Diaphragm |
PTFE |
| Brand |
RV |
| Packing |
Wooden Case |
| Max Pressure |
120psi (0.84Mpa, 8.4bar) |
| Pump Body |
SST |
| Max Flow |
150gpm (570lpm) |
Technical Specifications
| Max Working Pressure |
120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate |
40gpm (150lpm) |
| Max Reciprocating Speed |
276cpm |
| Max Suction Height (Dry Sucking) |
5m |
| Max Permitted Grain |
0.16 in (4mm) |
| Max Air Consumption |
45scfm (22.5L/S) |
| Air Inlet Size |
1/2in |
| Air Outlet Size |
3/4in |
| Fluid Inlet Size |
1in |
| Fluid Outlet Size |
1in |
| Weight |
34KGS |
Our Advantages
Packing & Delivery
Company Profile
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. As a High-Tech Enterprise and Credit Company, we specialize in diaphragm pumps and control valves with over 40 patents, including 10 invention patents.
Our product range includes: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, and various control valves. We hold necessary certificates including TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS.
We serve industries including chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical. Our clients include BASF, Bayer, and SAMSUNG, with exports to over 70 countries.
Material Options:
Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
Diaphragm: Teflon, Santoprene, Viton, Hytrel, Buna-N
Available sizes: 1/4" to 3"
Connection types: Threaded (1/4" to 1-1/2") or Flanged (1/2" to 3")
Our Service
- All enquiries replied within 24 working hours
- Professional design and production team
- Standard export wooden case packaging (non-fumigation)
- Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union - please confirm with us for exact orders.
Q: What is the delivery time?
A: Depends on quantity. Generally 1-7 working days.
Q: What about package?
A: Cartons with foam inside & wooden case & pallet.
Q: How are the products delivered?
A: By International express or Sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can produce according to custom requirements.
